Equipment

D1 Mold & Tool houses some of the most technologically advanced equipment available on the market today:

We begin with service in the design area and offer complete use of UG NX11 Software, which encompasses both 2D & 3D design work to build or alter solid model files.
Contact Us for a Free Estimate
See it in Action

Axile G8 – 5 Axis

  • 20,000 RPM Spindle Speed
  • Travel: x-axis = 670mm y-axis = 830mm z-axis = 600mm
  • Through Spindle Coolant
  • Accuracy within 0.008mm with 0.005mm repeatability
See it in Action

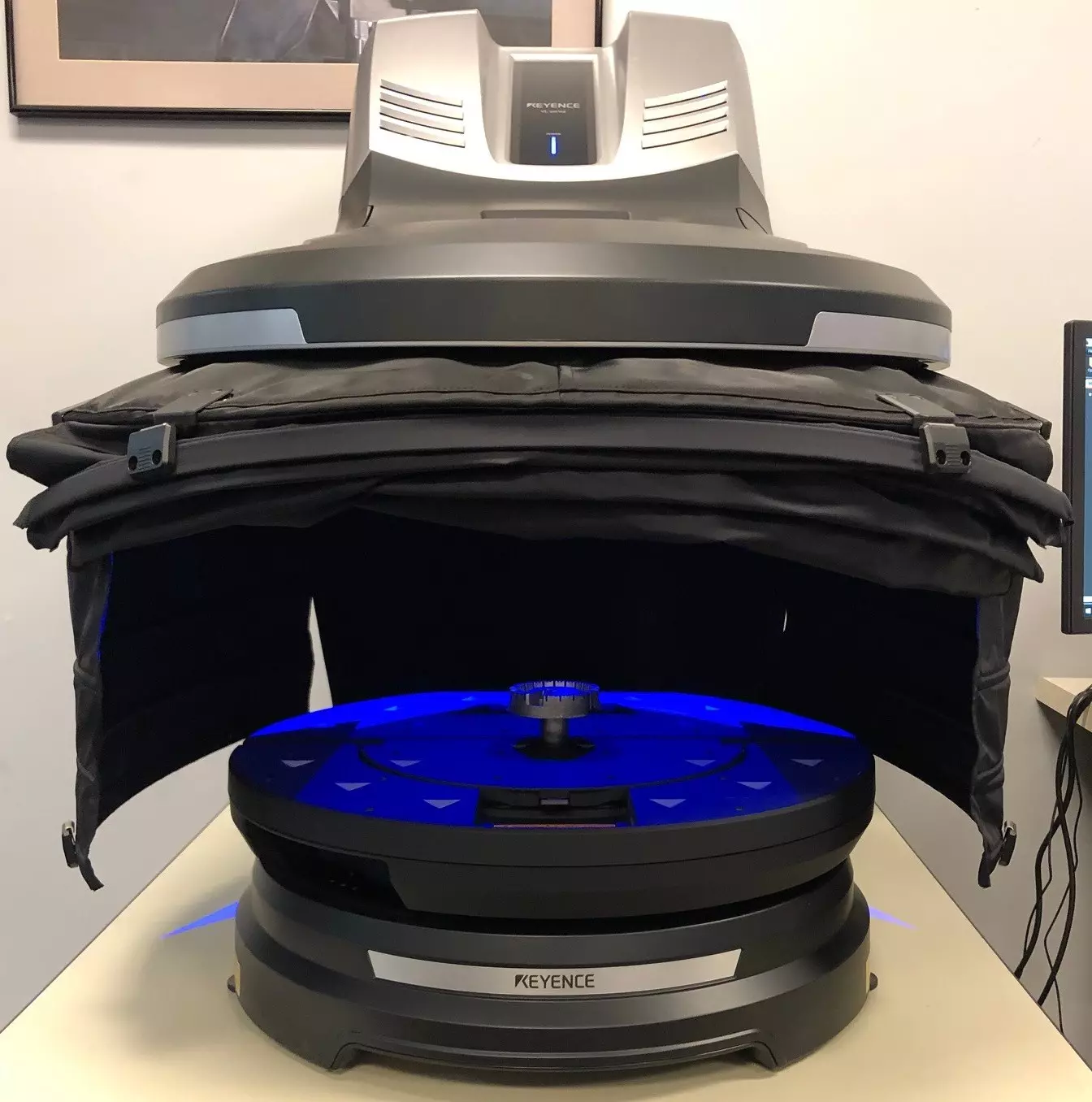

Keyence VL 570

  • 3D Scanner CMM
  • Guaranteed Measurement Accuracy ± 10µ (0.0004”)
  • Repeatability within 2µ (0.000079”)
  • Compliant with Traceability Standards
  • Cad Comparison, Part to Part Comparison, Thickness Measurement, & 3D Color Imaging
  • 360 Degree Capability
See it in Action

Sodick Linear High Speed AL40G+

  • 750mm x 549mm x 320mm Work Tank
  • Max Weight – 1212 lbs.
  • Max Electrode Wt. – 110 lbs.
  • Travel:
  • X – 15.75in(400mm)
  • Y – 11.81in(300mm)
  • Z – 10.63in(270mm)

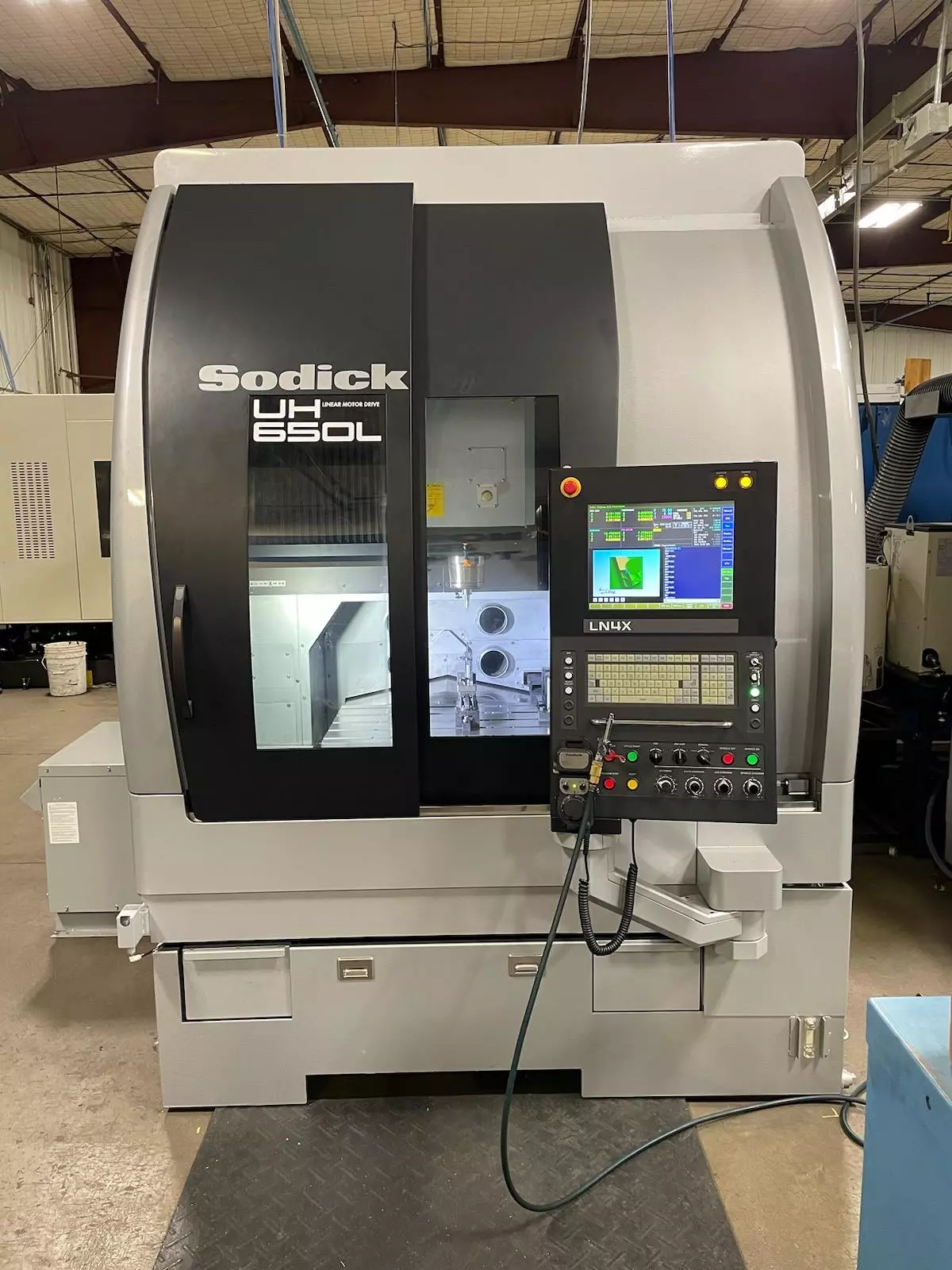

Graphite Machine Sodick UH650L E32

  • Graphite Machining Center
  • 40,000 RPM Spindle Speed
  • Integrated Torit Graphite Dust Collector
  • Clean & Efficient Disposal
  • Blum Laser Tool Measurement

Akari Seiki 450i

  • 15,000 RPM Spindle Speed
  • 30 Horsepower
  • 1,000 PSI Chip Blaster – Through Spindle Coolant
  • 400mm x 400mm Table

Smart SM2500

  • 6,000 RPM Spindle Speed
  • Travel:
  • X-axis=98.36"
  • Y-axis=40.16"
  • Z-axis=39.43
  • 9,100-pound Maximum Table Weight
  • Through Spindle Coolant - 320 psi

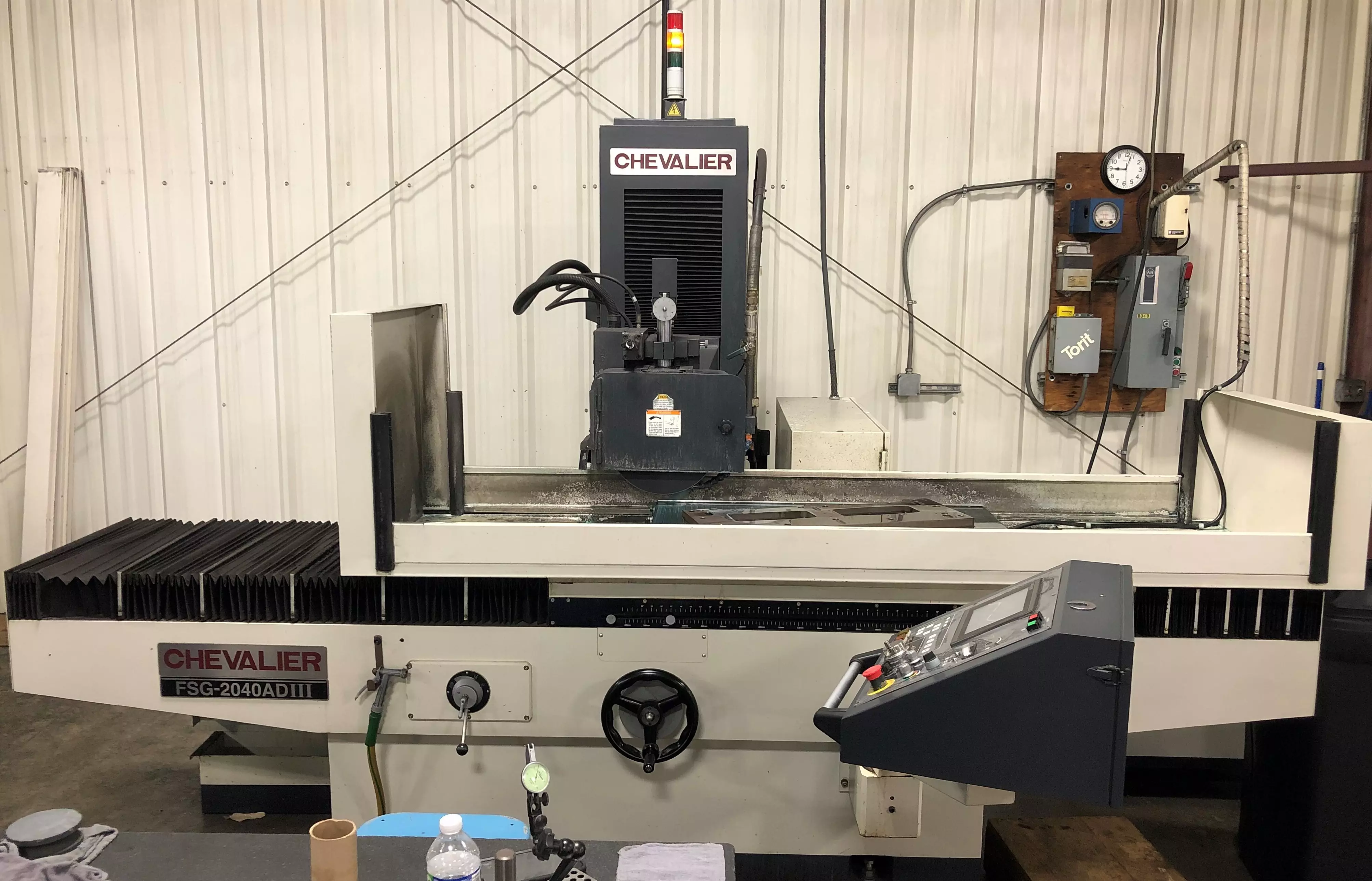

(2) Chevalier FSG-2040 ADIII Grinder

  • 1,450 RPM Spindle Speed
  • 7.5 Horsepower Spindle Motor
  • 508mm x 1,016mm Table
  • 1,100mm Maximum Table Stroke

Chevalier Accugrind Surface Grinder 6/18

  • 500mm Longitudinal Grind Length
  • 0.001mm Vertical Micro Feed

NEW! YCM C10

  • 15,000 RPM Spindle Speed
  • 40 Horsepower Travel:
  • Travel:
  • X – 40 in(1016mm)
  • Y –23.6 in(599.44)
  • Z – 23.6 in(599.44)
  • 40.09”(1038.86mm) x 25.59(649.986mm) Table
  • Thru Spindle Coolant Chipbalster 1000 PSI

NEW! YCM B7DM

  • 24,000 RPM Spindle Speed
  • 30 Horsepower Travel:
  • Travel:
  • X – 26in
  • Y – 20.1in
  • Z – 15.8in
  • 800mm x 510mm Table
  • Renishaw Laser and Probe
  • Full Table Coverage with Magnet

YCM NSV 102AM

  • 20,000 Spindle Speed
  • 30 Horsepower
  • Spindle Cooling System
  • 1,120mm x 650mm Table
  • Blum Laser and Probe
  • Full Table Coverage with Magnet

YCM NTV 158B

  • 15,000 RPM HSK-A100
  • 30 HP IDD Spindle
  • Travels 60.2 x 30.0 x 27.6 inches

YCM NXV 560A

  • 12,000 RPM Spindle Speed
  • 25 Horsepower
  • 701mm x 419mm Table
  • Shower Coolant System

YCM WV108B

  • 10,000 RPM Spindle Speed
  • 30 Horsepower
  • 1,000 PSI Chip Blaster – Through Spindle Coolant
  • 1,300mm x 820mm Table
  • 50 Taper

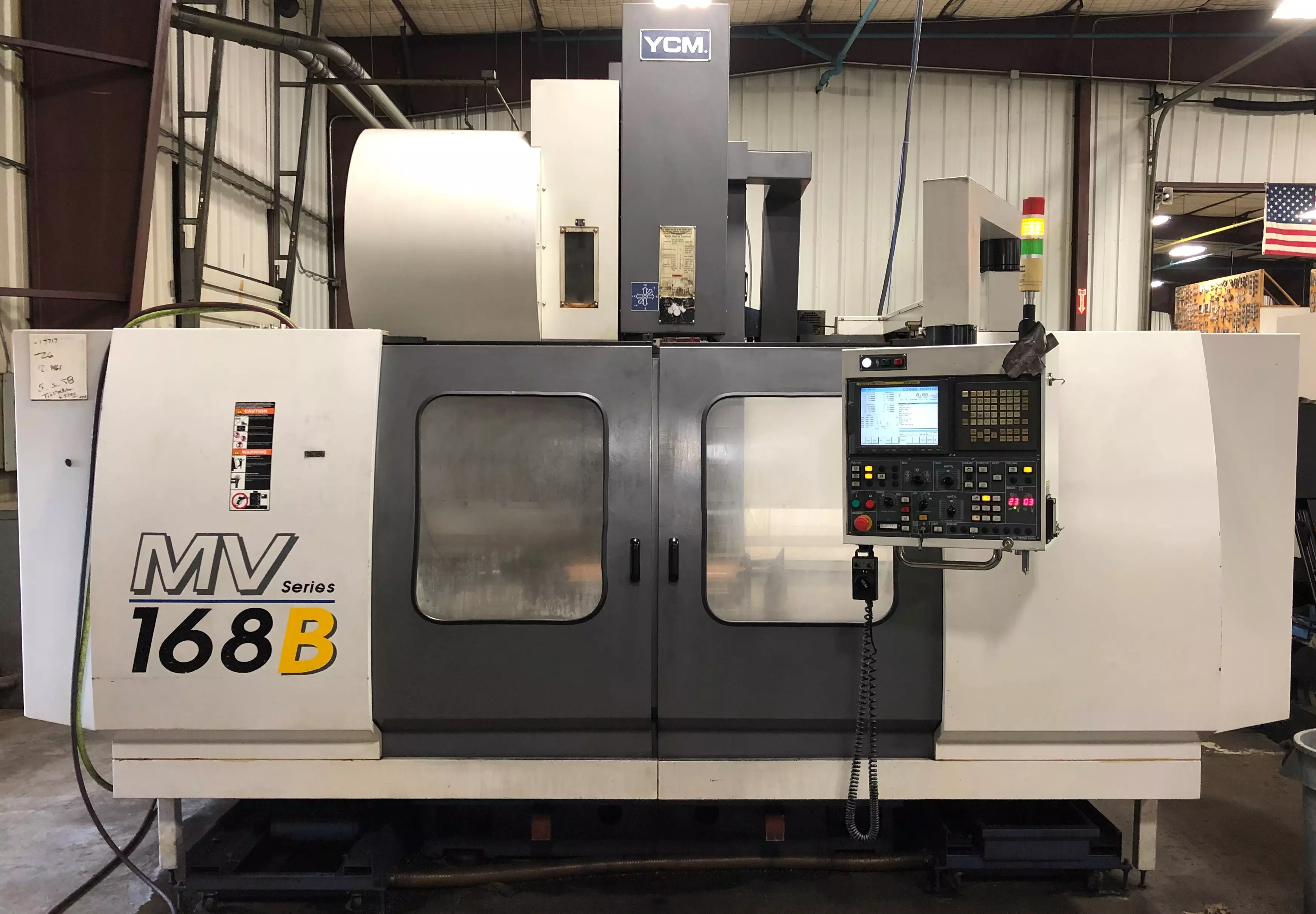

YCM MV168B

  • 6,000 RPM Spindle Speed
  • 25 Horsepower
  • 1,700mm x 760mm Table
  • 50 Taper

YCM GT-200B Lathe

  • 15 Horsepower
  • 260mm Turn Diameter
  • 4,500 RPM Spindle Speed
  • 1,120mm x 650mm Table
  • 30 Tool Changing Capacity
  • Blum Laser and Probe
  • Programmed using BobCAD

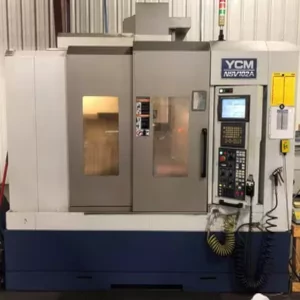

(2) YCM NSV 102A Vertical Machining Centers

  • 12,000 RPM Spindle Speed
  • (1) 1,000 PSI Through Spindle Coolant
  • 30 Horsepower
  • 1,200mm x 650mm Table

(2) YCM NDV102A

  • (1) 15,000 RPM Spindle Speed
  • (1) 20,000 RPM Spindle Speed
  • 30 Horsepower
  • Spindle Cooling System
  • 1,200mm x 650mm Table
  • Blum Laser and Probe
  • Full Table Coverage with Magnet

(2) Makino S56

  • 20,000 RPM Spindle Speed
  • 20 Horsepower
  • 1,000mm x 500mm Tabler
  • 20 Tool Changing Capacity

Graphite Machine Sodick TT1 – 400A

  • Graphite Machining Center
  • 40,000 RPM Spindle Speed
  • Integrated Torit Graphite Dust Collector
  • Clean & Efficient Disposal
  • Blum Laser Tool Measurement

Sodick Linear High Speed AD35L EDM

  • 975mm x 555mm x 350mm Work Tank
  • Travel:
  • X – 13.779in
  • Y – 9.842in
  • Z – 10.629in
  • Max Weight – 1212 lbs.
  • Max Electrode Wt. – 110 lbs.
  • Integrated Hirschann
  • NC Controlled Rotary Table

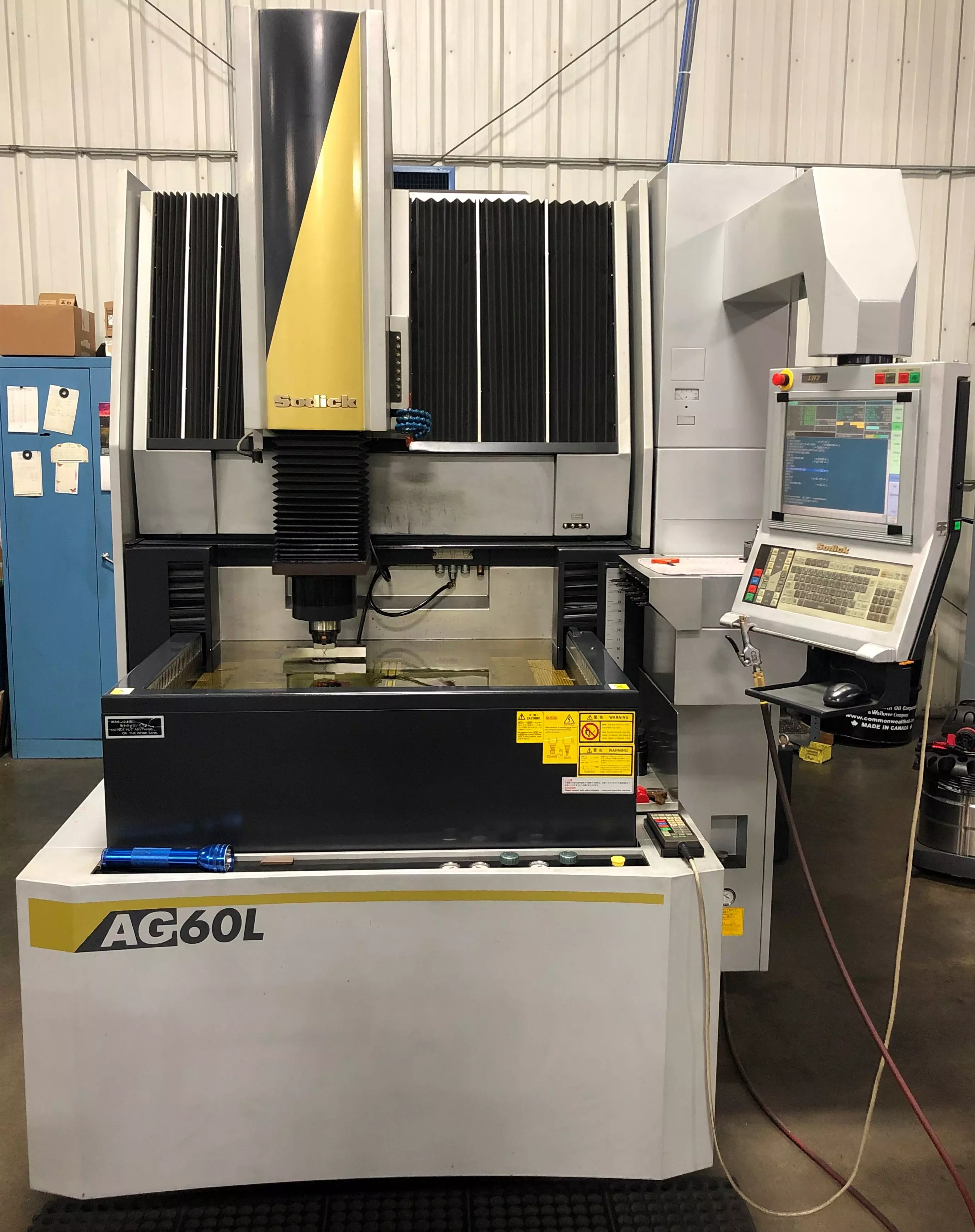

(2) Sodick AG60L EDM

  • 950mm x 740mm x 460mm Work Tank
  • 3,307 Maximum Workpiece Weight
  • 3-Axis Linear

MITUTOYO CRYSTA-Apex V574

  • Coordinate Measuring Machine 19.7 in. (500 mm) X 27.6 in. X (700 mm) X 15.7 in. (400 mm)
  • RENISHAW PH10T Plus Probe Head
  • Maximum Workpiece Weight » 396 lbs (180 kg)

Moore #3 Jig Grinder

  • 280mm x 482mm Table

Reid Rollerway Surface Grinder 6/18

  • 152mm x 457mm Table Capacity
  • 508mm Longitudinal Grind Length

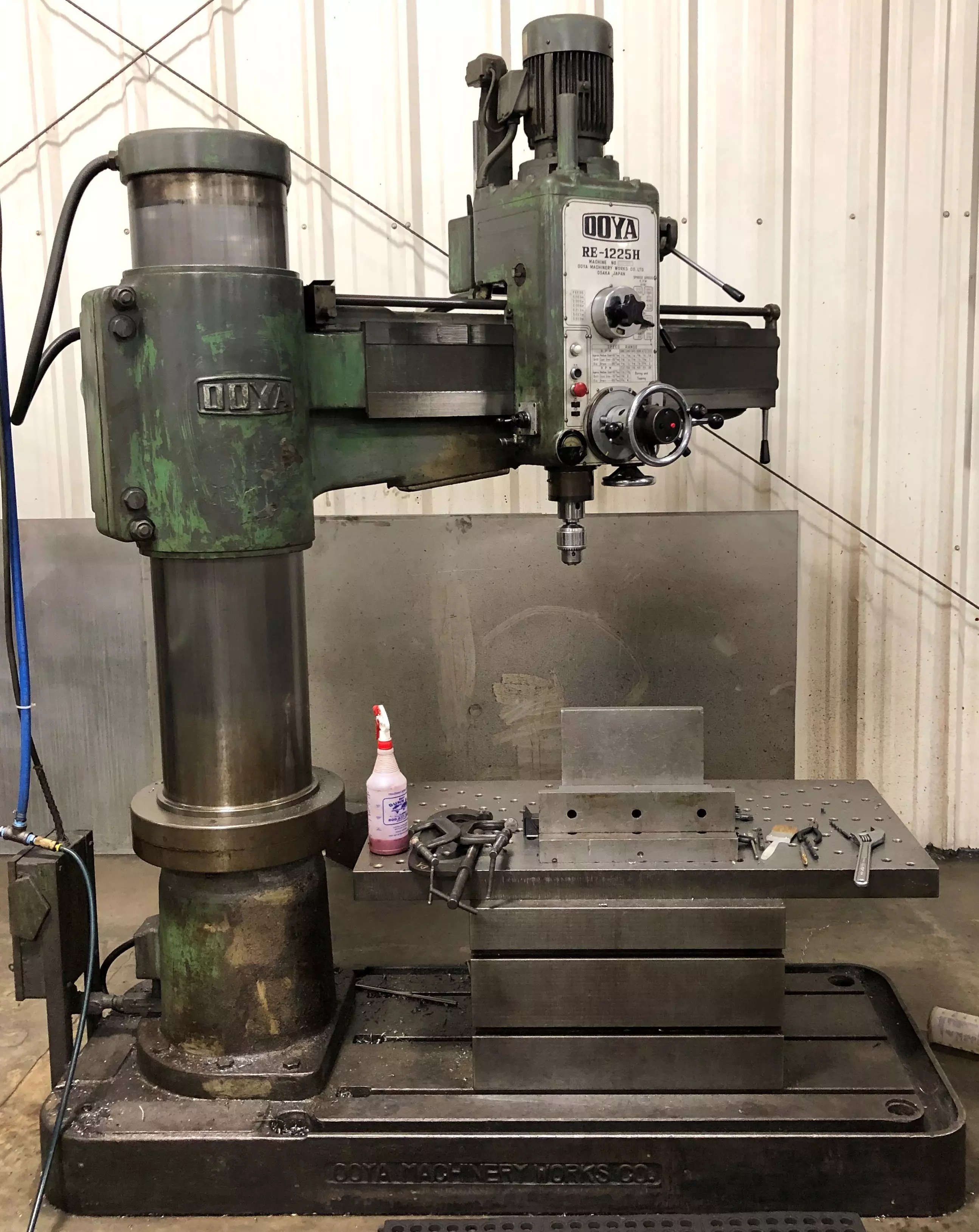

OOYA RE-1225-H Radial Drill Press

  • 1,650 RPM Spindle Speed
  • 650mm Vertical Travel of Arm

Series II Bridgeport Mill
